SentinelOne EDR

Overview

SentinelOne is an Endpoint Detection and Response (EDR) solution that provides comprehensive endpoint protection and monitoring. This setup guide shows how to forward device assets monitored by SentinelOne EDR to Sekoia.io for centralized asset management and security operations.

  • Vendor: SentinelOne
  • Product: SentinelOne EDR
  • Supported environment: SaaS

Configure

How to create an API token

To connect SentinelOne to Sekoia.io, you need to generate an API token from the SentinelOne Management Console. We recommend creating a Service User to use a dedicated account for the integration.

Important: If you have multiple SentinelOne Management Consoles, you must generate an API Token for each one.

Note

The API token you generate is time-limited. To generate a new token (and invalidate the old one), you will need to copy the Service User. Please refer to the SentinelOne documentation to obtain guidance on how to do this action.

Follow these steps to create an API token:

  1. In the SentinelOne management console, go to Policies and settings, select User management, and then select Service Users.

  2. Create a new New Service User by specifying a name and an expiration date.

  3. Choose the Scope of the Service User: Global, Account or Site, select the appropriate Account(s) or Site(s) and the role to grant to the Viewer.

  4. Select Create User and copy the generated API token to a safe place.

Warning

  • A Service User with the Site Admin or IR Team role is recommended for full functionality.
  • The API token is displayed only once at creation. Save it securely; if you lose it, you must generate a new one.
  • When copying the API token, ensure you copy the complete token value.

Create your asset connector

To start getting your SentinelOne assets into Sekoia.io, you need to create an asset connector on the Assets page. To do so, follow these steps:

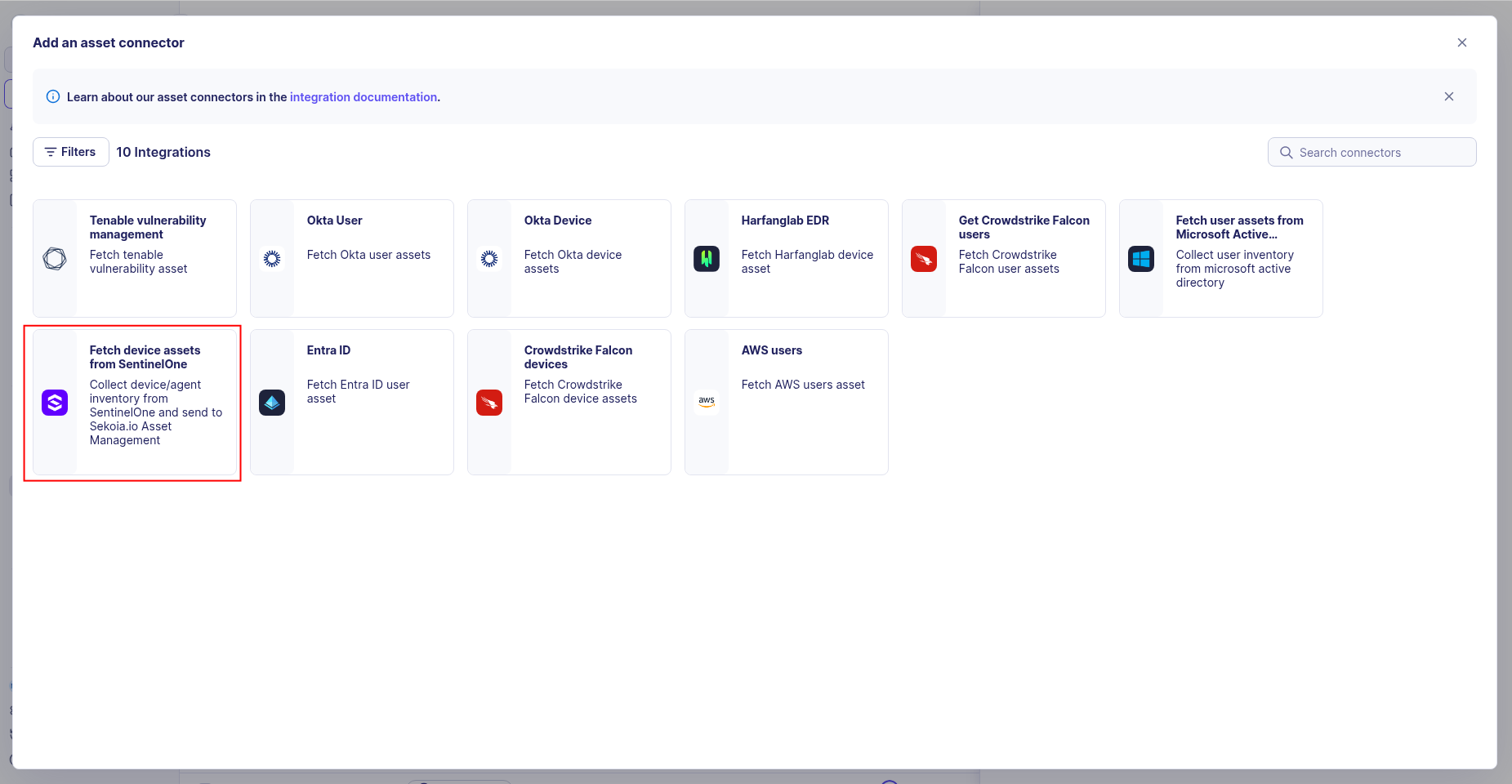

  1. Click the Asset connectors button to create a new connector.

    Asset connectors button highlighted

  2. Click the + New connector button.


  3. Choose SentinelOne EDR, give it a name, and fill the required fields:

    • API Token: The API token you generated from the SentinelOne Management Console
    • URL Domain: Your SentinelOne Management Console URL (e.g., https://your-instance.sentinelone.net)

    SentinelOne EDR connector configuration form

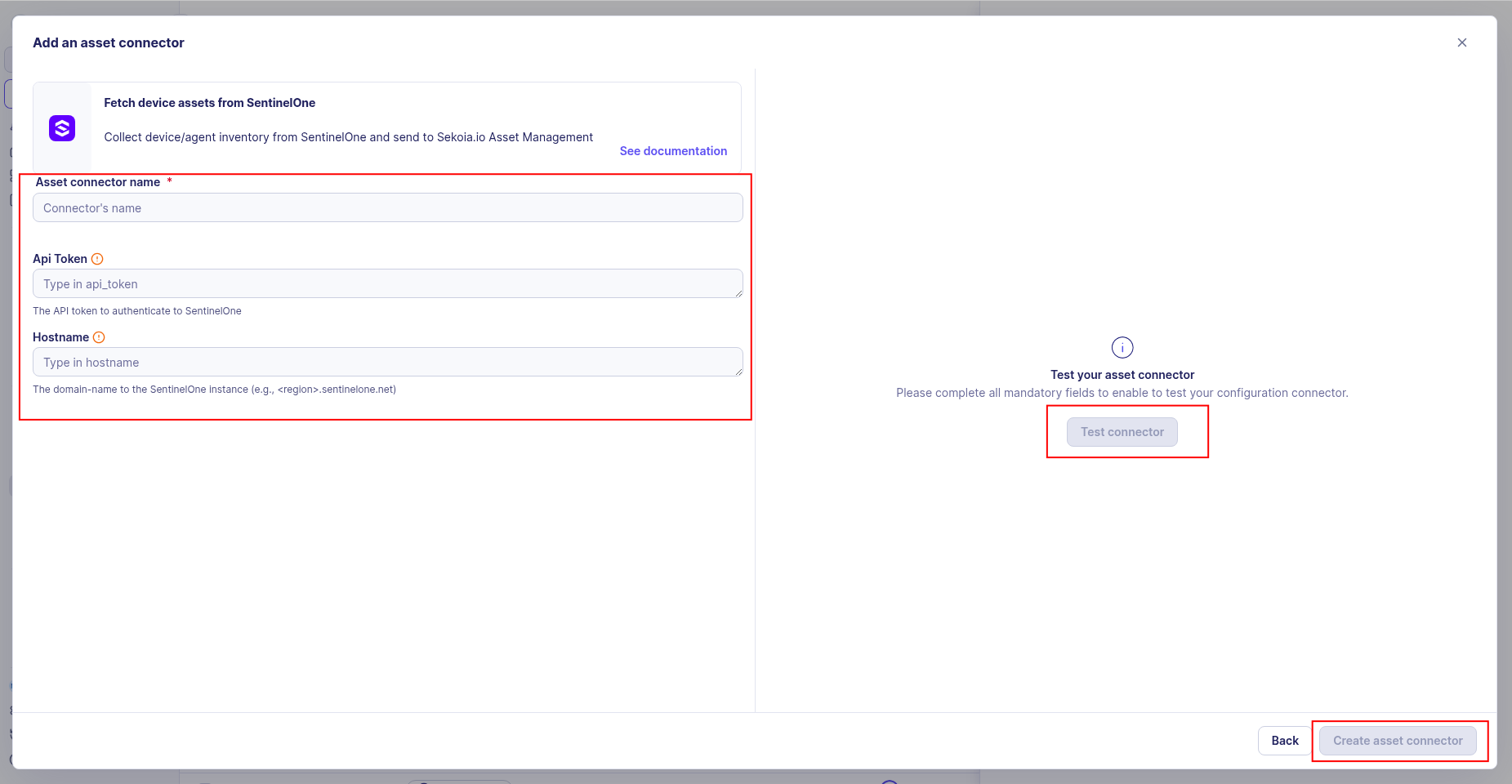

  4. Test the connection by clicking the Test connector button.

    Connector test result and Create asset connector button highlighted

  5. Click the Create asset connector button.

Warning

  • Ensure you have the correct URL Domain for your SentinelOne Management Console.
  • The API token must have sufficient permissions to read endpoint and agent information.

OCSF Mapping for SentinelOne Devices

OCSF Class: device_inventory_info

Class UID: 5001

Information Collected

The SentinelOne Devices fetches comprehensive information and transforms it into the OCSF (Open Cybersecurity Schema Framework) format for standardized security monitoring and asset management.

API Response Examples

SentinelOne Active Device

SentinelOne device with active status and protection enabled

{
  "id": "475482087580431375",
  "name": "LAPTOP-JOHN-DEV",
  "type": "computer",
  "osType": "windows",
  "osVersion": "Windows 10 Pro",
  "osRevision": "22H2",
  "machineType": "laptop",
  "manufacturer": "Dell",
  "modelName": "Latitude 5540",
  "serialNumber": "ABC123DEF456GHI",
  "processorCount": 8,
  "coreCount": 8,
  "memorySize": 16384,
  "ipv4Addresses": [
    "192.168.1.100",
    "10.0.0.50"
  ],
  "ipv6Addresses": [
    "fe80::1234:5678:90ab:cdef"
  ],
  "macAddresses": [
    "00:1A:2B:3C:4D:5E"
  ],
  "isActive": true,
  "isOnline": true,
  "lastActiveDate": "2025-08-26T09:30:00.000Z",
  "createdDate": "2023-06-04T10:00:00.000Z",
  "updatedDate": "2025-08-26T09:30:00.000Z",
  "agentVersion": "23.4.1.1001",
  "agentStatus": "active",
  "threatLevel": "good",
  "encryptionEnabled": true,
  "isFirewallEnabled": true,
  "isTamperProtectionEnabled": true,
  "lastIncidentDate": null,
  "threatCount": 0,
  "domain": "example.com",
  "computerName": "LAPTOP-JOHN-DEV",
  "userId": "u1234567890abcdef",
  "userName": "john.developer@example.com",
  "userFullName": "John Developer"
}

SentinelOne Inactive Device

SentinelOne device with inactive status

{
  "id": "475482087580431376",
  "name": "SERVER-OLD-PROD",
  "type": "server",
  "osType": "linux",
  "osVersion": "Ubuntu 18.04.6 LTS",
  "osRevision": "5.4.0-42-generic",
  "machineType": "server",
  "manufacturer": "HP",
  "modelName": "ProLiant DL380 Gen10",
  "serialNumber": "SG12345678",
  "processorCount": 16,
  "coreCount": 32,
  "memorySize": 131072,
  "ipv4Addresses": [
    "10.0.0.200"
  ],
  "ipv6Addresses": [],
  "macAddresses": [
    "00:30:48:2E:3A:A8"
  ],
  "isActive": false,
  "isOnline": false,
  "lastActiveDate": "2025-06-01T14:30:00.000Z",
  "createdDate": "2021-03-15T08:00:00.000Z",
  "updatedDate": "2025-08-26T09:30:00.000Z",
  "agentVersion": "21.8.2.998",
  "agentStatus": "inactive",
  "threatLevel": "unknown",
  "encryptionEnabled": false,
  "isFirewallEnabled": true,
  "isTamperProtectionEnabled": false,
  "lastIncidentDate": "2025-05-20T10:00:00.000Z",
  "threatCount": 0,
  "domain": "example.com",
  "computerName": "SERVER-OLD-PROD",
  "userId": null,
  "userName": null,
  "userFullName": null
}

Data Mapping Table

The following table shows how source data is mapped to OCSF model fields:

Source Field OCSF Field Path Description Data Type Logic
id device.uid SentinelOne device unique identifier string Direct mapping of SentinelOne device ID
name device.name Device display name string Direct mapping of device name
computerName device.hostname Device hostname string Direct mapping of computer name
domain device.domain Network domain name string Direct mapping of domain
osType device.os.name Operating system type string Direct mapping of OS type (windows, linux, macos)
osType device.os.type Operating system type enumeration string Map osType to OCSF OS type enum (Windows, AppleOS, Linux)
osVersion device.os.version Operating system version string Direct mapping of OS version
osRevision device.os.build Operating system build/revision number string Direct mapping of OS revision/build number
serialNumber device.serial_number Device serial number string Direct mapping of device serial number
manufacturer device.manufacturer Device manufacturer string Direct mapping of device manufacturer
modelName device.model Device model name string Direct mapping of device model
processorCount device.cpu_count Number of processors integer Direct mapping of processor count
coreCount device.core_count Number of CPU cores integer Direct mapping of core count
memorySize device.memory_size Total memory size in megabytes integer Direct mapping of memory size in MB
ipv4Addresses | first device.ip Primary IPv4 address string Extract first IPv4 address
ipv4Addresses device.ipv4_addresses All IPv4 addresses associated with device array[string] Direct mapping of all IPv4 addresses
ipv6Addresses device.ipv6_addresses All IPv6 addresses associated with device array[string] Direct mapping of all IPv6 addresses
macAddresses | first device.mac_address Primary MAC address string Extract first MAC address
macAddresses device.mac_addresses All MAC addresses associated with device array[string] Direct mapping of all MAC addresses
type device.type Device type classification string Direct mapping of device type (computer, server, etc.)
machineType device.machine_type Machine type (laptop, desktop, server, etc.) string Direct mapping of machine type (laptop, desktop, server, etc.)
isActive device.is_enabled Whether device is active in SentinelOne boolean Direct mapping of active status
isOnline device.is_online Whether device is currently online boolean Direct mapping of online status
agentStatus device.agent_status SentinelOne agent status string Direct mapping of agent status (active, inactive, uninstalled)
agentVersion device.agent_version SentinelOne agent version string Direct mapping of agent version
threatLevel device.threat_level Device threat level string Direct mapping of threat level (good, suspicious, bad, unknown)
threatCount device.threat_count Number of threats detected on device integer Direct mapping of threat count
lastIncidentDate device.last_incident_time Last incident timestamp (Unix epoch) integer Convert ISO 8601 to Unix epoch; null if no incidents
encryptionEnabled device.is_encrypted Whether disk encryption is enabled boolean Direct mapping of encryption status
isFirewallEnabled device.is_firewall_enabled Whether firewall is enabled boolean Direct mapping of firewall status
isTamperProtectionEnabled device.is_tamper_protected Whether tamper protection is enabled boolean Direct mapping of tamper protection status
userId device.user_uid Associated user ID string Direct mapping of associated user ID; null if not applicable
userName device.user_name Associated user name string Direct mapping of associated user name
userFullName device.user_full_name Associated user full name string Direct mapping of associated user full name
createdDate device.created_time Device creation timestamp (Unix epoch) integer Convert ISO 8601 to Unix epoch
updatedDate device.updated_time Last updated timestamp (Unix epoch) integer Convert ISO 8601 to Unix epoch
lastActiveDate device.last_seen_time Last active timestamp (Unix epoch) integer Convert ISO 8601 to Unix epoch; null if never active
createdDate time OCSF event timestamp (device discovery time) integer Convert ISO 8601 to Unix epoch for OCSF event timestamp
static: 2 activity_id OCSF activity ID for inventory collection integer Always 2 for 'Collect' activity
static: Collect activity_name OCSF activity name string Always 'Collect'
static: Discovery category_name OCSF category name string Always 'Discovery'
static: 5 category_uid OCSF category UID integer Always 5 for Discovery category
static: Device Inventory Info class_name OCSF class name string Always 'Device Inventory Info'
static: 5001 class_uid OCSF class UID integer Always 5001 for Device Inventory Info
computed: 500100 + activity_id type_uid OCSF type UID integer Base 500100 + activity_id (2 = 500102)
computed: class_name + ': ' + activity_name type_name OCSF type name string Concatenate 'Device Inventory Info: Collect'
static: Informational severity Event severity level string Always 'Informational' for inventory events
static: 1 severity_id OCSF severity ID integer Always 1 for Informational severity
static: SentinelOne metadata.product.name Source product name string Always 'SentinelOne'
static: 1.6.0 metadata.version OCSF schema version string Fixed OCSF schema version
threatLevel enrichments[0].data.threat_level Device threat level for security posture string Direct mapping of threat level
threatCount enrichments[0].data.threat_count Number of active threats integer Direct mapping of threat count
isActive enrichments[0].data.is_enabled Whether device is active boolean Direct mapping of active status
agentStatus enrichments[0].data.agent_status SentinelOne agent status string Direct mapping of agent status
agentVersion enrichments[0].data.agent_version SentinelOne agent version string Direct mapping of agent version
encryptionEnabled enrichments[0].data.is_encrypted Whether device is encrypted boolean Direct mapping of encryption status
isFirewallEnabled enrichments[0].data.is_firewall_enabled Whether firewall is enabled boolean Direct mapping of firewall status
isTamperProtectionEnabled enrichments[0].data.is_tamper_protected Whether tamper protection is enabled boolean Direct mapping of tamper protection status
lastActiveDate enrichments[0].data.last_seen Last active timestamp (Unix epoch) integer Convert ISO 8601 to Unix timestamp; null if never active
static: device_security enrichments[0].name Enrichment object name string Always 'device_security' for device enrichment type
static: sentinelone_device enrichments[0].value Enrichment object value string Always 'sentinelone_device' for SentinelOne device security enrichment

OCSF Model Structure

Device Inventory Info: Collect

Transformed SentinelOne device to OCSF Device Inventory Info event

{
  "activity_id": 2,
  "activity_name": "Collect",
  "category_name": "Discovery",
  "category_uid": 5,
  "class_name": "Device Inventory Info",
  "class_uid": 5001,
  "type_name": "Device Inventory Info: Collect",
  "type_uid": 500102,
  "severity": "Informational",
  "severity_id": 1,
  "time": 1685854800,
  "metadata": {
    "product": {
      "name": "SentinelOne"
    },
    "version": "1.6.0"
  },
  "device": {
    "uid": "475482087580431375",
    "name": "LAPTOP-JOHN-DEV",
    "hostname": "LAPTOP-JOHN-DEV",
    "domain": "example.com",
    "type": "computer",
    "machine_type": "laptop",
    "serial_number": "ABC123DEF456GHI",
    "manufacturer": "Dell",
    "model": "Latitude 5540",
    "cpu_count": 8,
    "core_count": 8,
    "memory_size": 16384,
    "ip": "192.168.1.100",
    "ipv4_addresses": [
      "192.168.1.100",
      "10.0.0.50"
    ],
    "ipv6_addresses": [
      "fe80::1234:5678:90ab:cdef"
    ],
    "mac_address": "00:1A:2B:3C:4D:5E",
    "mac_addresses": [
      "00:1A:2B:3C:4D:5E"
    ],
    "is_enabled": true,
    "is_online": true,
    "is_encrypted": true,
    "is_firewall_enabled": true,
    "is_tamper_protected": true,
    "threat_level": "good",
    "threat_count": 0,
    "agent_status": "active",
    "agent_version": "23.4.1.1001",
    "user_uid": "u1234567890abcdef",
    "user_name": "john.developer@example.com",
    "user_full_name": "John Developer",
    "created_time": 1685854800,
    "updated_time": 1725184200,
    "last_seen_time": 1725184200,
    "last_incident_time": null,
    "os": {
      "name": "windows",
      "type": "Windows",
      "version": "Windows 10 Pro",
      "build": "22H2"
    }
  },
  "enrichments": [
    {
      "name": "device_security",
      "value": "sentinelone_device",
      "data": {
        "threat_level": "good",
        "threat_count": 0,
        "is_enabled": true,
        "agent_status": "active",
        "agent_version": "23.4.1.1001",
        "is_encrypted": true,
        "is_firewall_enabled": true,
        "is_tamper_protected": true,
        "last_seen": 1725184200
      }
    }
  ]
}
