Push Sekoia.io IOCs to Palo Alto XSIAM Collection

This guide explains how to build and configure a Sekoia.io playbook that:

  1. Consumes your Sekoia CTI feed of IOCs (Indicators of Compromise).
  2. Transforms them into the JSON format expected by Palo Alto XSIAM.
  3. Pushes them via API into a XSIAM Collection for detection.

Prerequisites

  1. A Sekoia Intelligence License and a user account with access to Playbooks feature.
  2. A Palo Alto XSIAM Standard API Key and its associated XSIAM API ID.

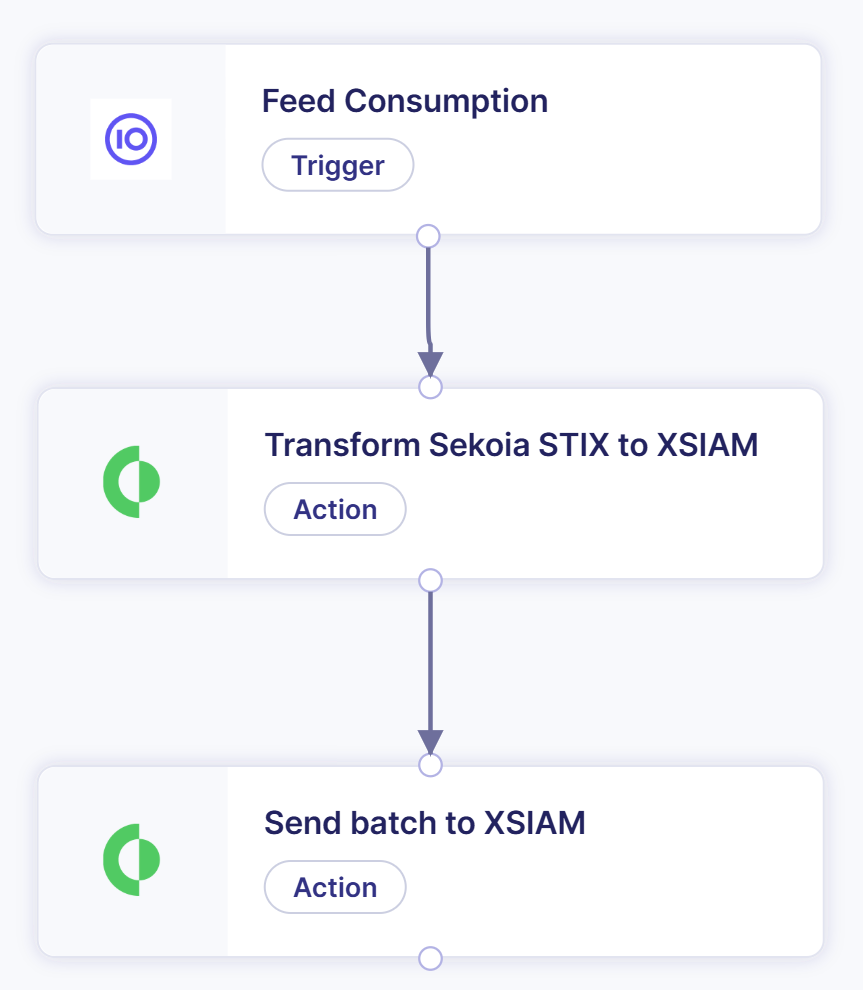

Playbook Overview

The playbook has 3 nodes:

  1. Feed Consumption (Trigger) Pulls the latest STIX objects (IOCs) from your custom Sekoia feed.
  2. Transform Sekoia STIX to XSIAM (Action) Converts STIX patterns and metadata into the JSON schema expected by XSIAM.
  3. Send Batch to XSIAM (Action) Calls the XSIAM indicators/insert_jsons API to inject indicators into a Collection.

xsiam_playbook_workflow

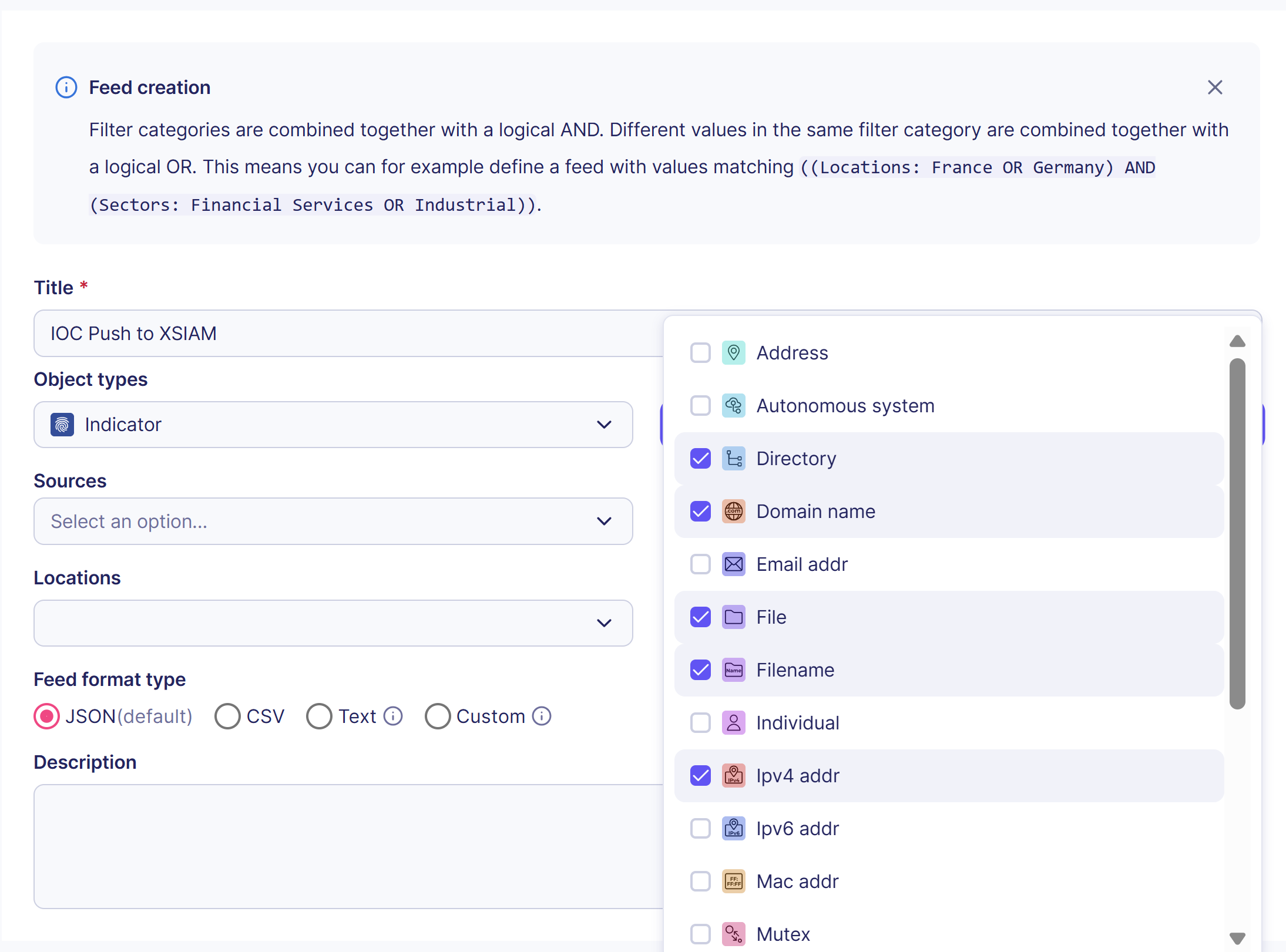

1. Create a Custom Feed

  1. In Sekoia.io, navigate to Observe ➔ Feeds.
  2. Click + New feed.
  3. Enter a Title (e.g. “XSIAM IOC Feed”).
  4. Under Object types, select Indicator.
  5. Under Observable types, check:
  6. Directory
  7. Domain name
  8. File
  9. Filename
  10. IPv4 address
  11. Keep the Feed format as JSON (default).
  12. Click Save.

xsiam_custom_feed

  1. In the feed details view, click Copy Feed ID. You will need this in the playbook configuration.

xsiam_custom_feed_copy_id

2. Create the Playbook from the Template

  1. Go to Configure ➔ Playbooks.
  2. Click + New Playbook.
  3. Choose Use a template.
  4. Search for xsiam.
  5. Select Push Sekoia.io IOCs to Palo Alto XSIAM Collection.
  6. Click Save.

3. Configure Each Node

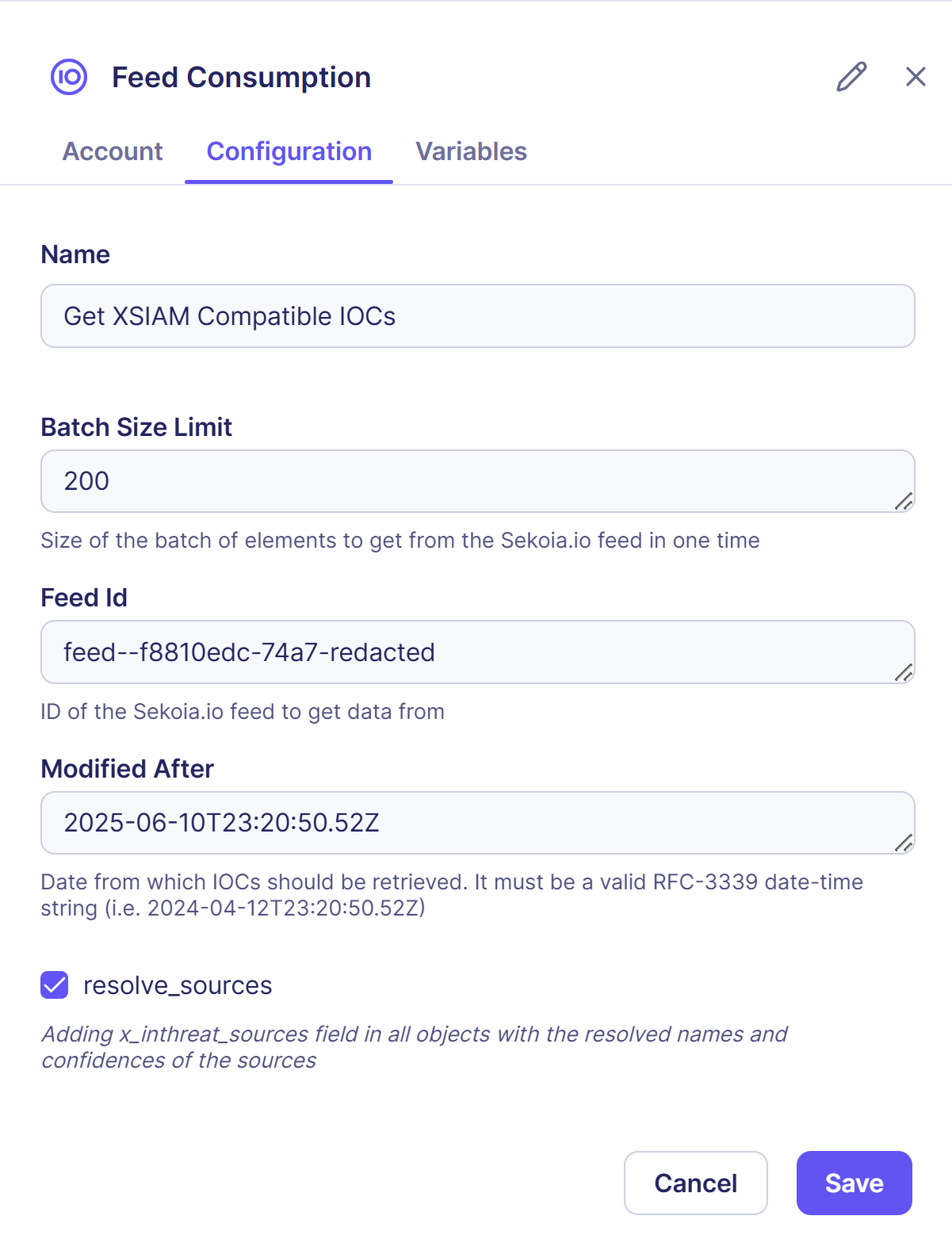

3.1 Feed Consumption (Node 0)

  • Module: CTI Feed Consumption
  • Account: None
  • Configuration:
  • Batch Size Limit: 200
  • Feed ID: Paste the Feed ID from step 1 (e.g. feed--xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx).
  • Modified After: an RFC-3339 timestamp (e.g. 2025-06-12T23:20:50.52Z). We recommend to start with a week of history to avoid disruption of SOC Analysts processes.
  • Resolve Sources: true

xsiam_custom_feed_consumption_configuration

This trigger outputs {{ node.0.stix_objects_path }}, a JSONPath to the STIX objects array.

3.2 Transform Sekoia STIX to XSIAM (Node 1)

  • Module: Transform Sekoia STIX to XSIAM
  • Source code: is availabe here
  • Account: None
  • Configuration: Defaults are ready to use—no mandatory overrides.

Built-in Mappings

  1. Observable → XSIAM field
Sekoia type XSIAM field
file HASH
filename FILENAME
directory PATH
domain-name DOMAIN_NAME
ipv4-addr IP

  1. Severity mapping

  2. confidence 0–39 → LOW

  3. confidence 40–79 → MEDIUM
  4. confidence 80–100 and kill_chain_phases ∈ {exploitation, installation, command-and-control, actions-on-objectives} → HIGH

  5. Others → INFO

  6. Reputation: all selected observables → BAD

  7. Reliability based on confidence:
Confidence Reliability
80–100 A
60–79 B
40–59 C
20–39 D
0–19 E
— F / G (unused)
  1. Comment: Valid from {valid_from} AND STIX Pattern: {pattern}
  2. Expiration date: uses valid_until date converted to epoch (ms).
  3. Class override: uses the Sekoia indicator ID, enabling a link back to https://app.<region_id>.sekoia.io/objects/indicator--<indicator-id>.

UI Overrides

You can override these arguments in the node’s UI:

Parameter Default Notes
class_override {id} Open string, ≤36 characters
comment Valid from {valid_from} AND STIX Pattern: {pattern} Free text
severity_mapping this field is empty but is applying the mapping explained in section 3.2.2.Severity mapping Use any of: LOW, MEDIUM, HIGH, CRITICAL, INFO
reliability_mapping this field is empty but is applying the mapping explained in section 3.2.4.Reliabilit Use any of: A, B, C, D, E, F, G
stix_objects_path {{ node.0.stix_objects_path }} JSONPath to STIX objects available in Sekoia

Examples

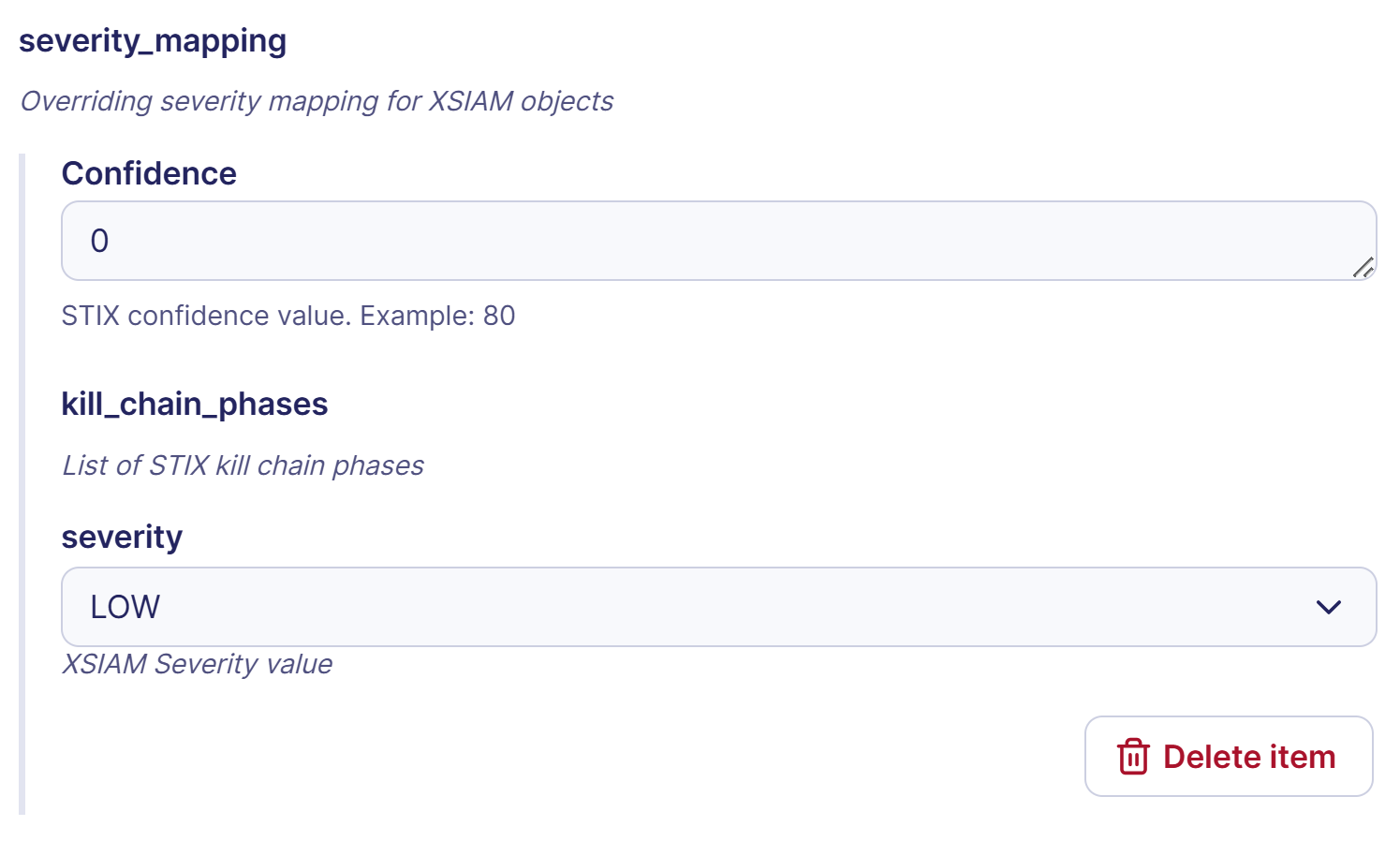

  • Force all severities to LOW (i.e. all Confidence values highier than 0 will be traduced in "LOW"):

xsiam_override_severity

  • Custom reliability bands:
Confidence Reliability
75–100 A
50–74 B
0–49 C
— D / E / F / G (unused)

xsiam_override_reliability

After running, {{ node.1.data }} contains a list of XSIAM-ready JSON objects.

3.3 Send Batch to XSIAM (Node 2)

  • Module: Send batch to XSIAM
  • Account: None
  • Configuration:
  • Method: POST
  • URL:
    https://<your-region>.xdr.fa.paloaltonetworks.com/public_api/v1/indicators/insert_jsons
    Replace <your-region> with your XSIAM region.
  • Headers:
    {
  "Accept": "application/json",
  "Content-Type": "application/json",
  "Authorization": "<REPLACE_WITH_API_KEY>",
  "x-xdr-auth-id": "<REPLACE_WITH_API_ID>"
}
  • JSON payload:
    {
  "request_data": {{ node.1.data }},
  "validate": true
}
  • fail_on_http_error: true
  • verify_ssl: false (set true in production)

This sends the transformed JSON to your XSIAM Collection.

4. Finalize and Test

  1. Save and Activate the playbook.
  2. Wait for the next scheduled run (a few seconds).
  3. In the playbook UI, check Trigger logs for messages like:
Start SEKOIA feed consumption trigger
Fetched objects in X seconds
Fetched 200 objects from the feed

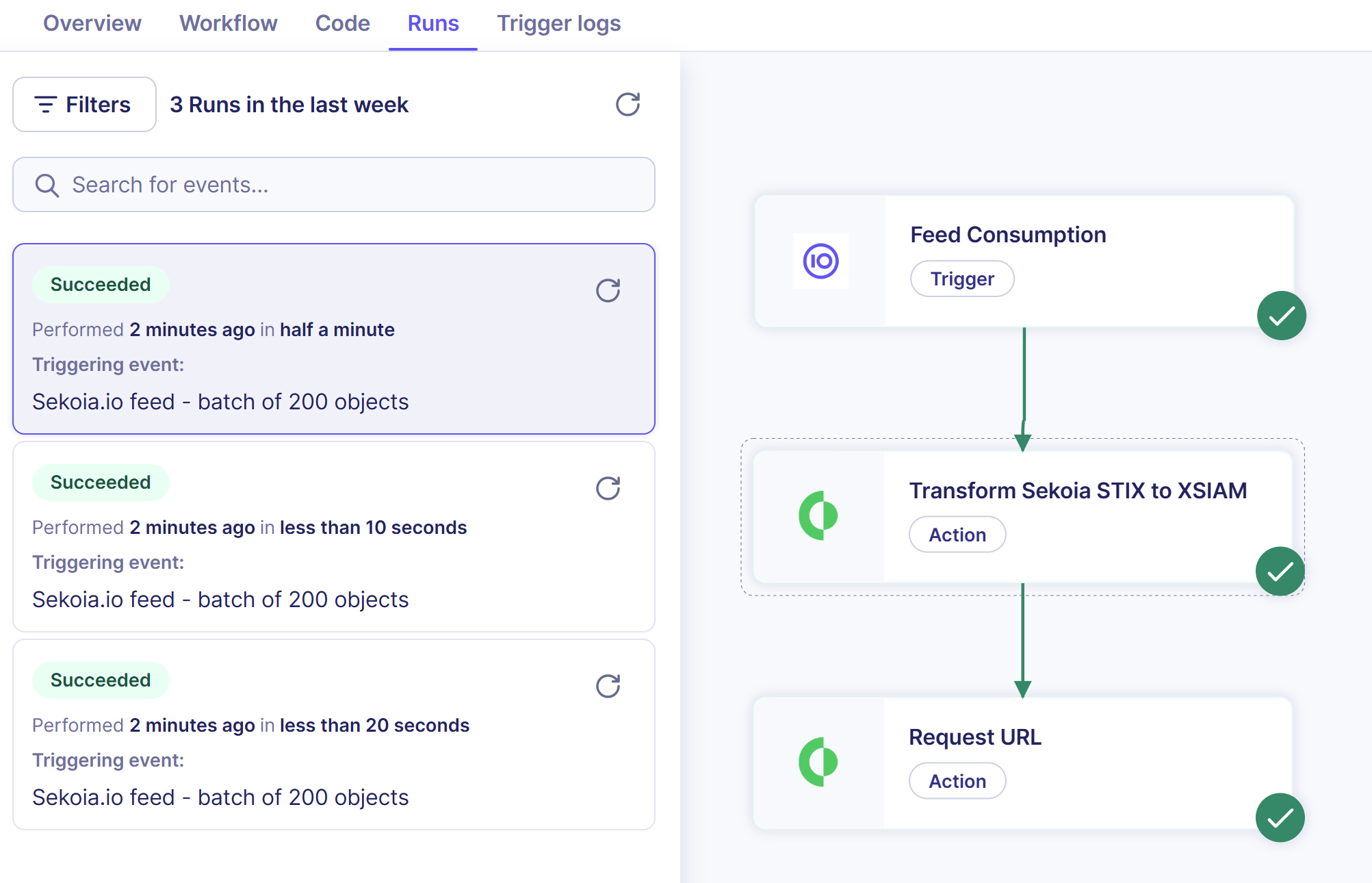

  1. Verify the run status under Runs.

xsiam_run_success

  1. In Palo Alto XSIAM, go to Collections ➔ Indicators to confirm your IOCs arrived.

Known Limitations

  • The DOMAIN_NAME indicator type in XSIAM does not support URL observables. URLs are omitted from the custom feed.
  • The IP indicator type does not support port information from network‐traffic STIX patterns. Only the IPv4 address is extracted, which may lose context. Ports are preserved in the comment field.
